Solar thermal collector-SCM


Overview

Working principle:

The pipeline is made of all the red copper and conducted by heat transfer medium liquid. Water can't flow in vacuum tubes and operated. The manifold uses Aluminum alloy mould material of high strength with Air flow design. It is furnished in good style.
Can withstand high pressure when it works.
Module design, arbitrary combination, which can meet the demand of large water consumption.


solar thermal collector scm-1

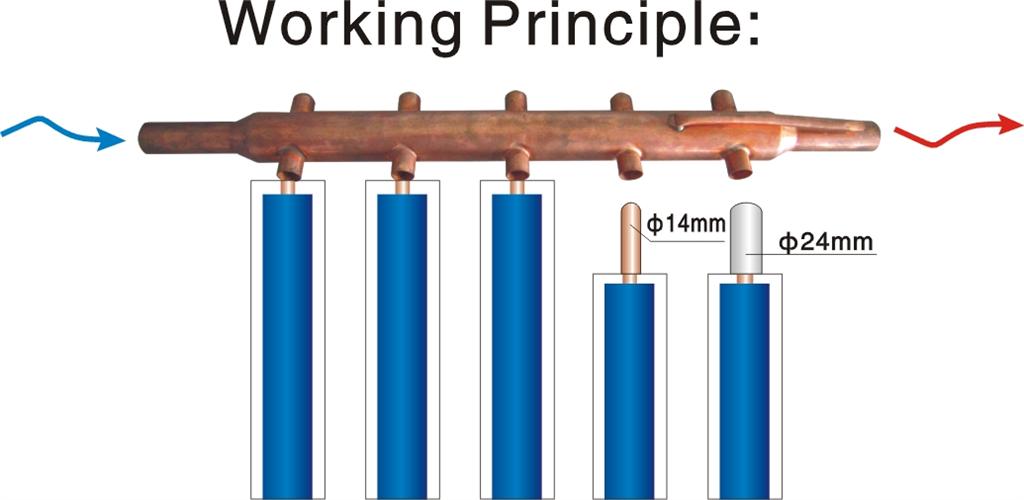

solar thermal collector scm-2

Working Principle
1) Vacuum tube is composed of inner and outer glass pipe, inspiratory layer, vacuum space, inspriatory membrane. The surface of inner and outer glass tube is plated with selective absorption layer. The layer absorb the solar energy and turn it into heat energy, aluminum fins pass the heat energy to the heat pipe, the liquid medium in the heat pipe is heated by the heat energy, then turns into the gas medium, the gas medium flows up to the top of the heat pipe (condenser) and transfer the energy to the copper manifold header heat pipe. At the same time the gas medium turns into the liquid when cooled, then flows down. Keep recycling.

2) An electronic controoler measures the temperature of the solar collector and the water in the bottom of the storage tank. If the collector is hotter, meaning there is heat available. The controller supplies power to a circulation pump which pushes liquid which in circulation system circulating. The heat will transferred to storage tank via the liquid.

solar thermal collector scm-3

 ●Manifold(interior):red copper
 ●Manifold (exterior):aluminum alloy
 ●Glass tube dimensions: 58mm×1.8/×0.85m
 ●Daily efficiency:≥55%
 ●Hail resistance:25mm
 ●Max pressure:12 bar
 ●Coating of vacuum tube:ALN/AIN-SS/CU
 ●Heat Pipe:anti-freezing>-35℃

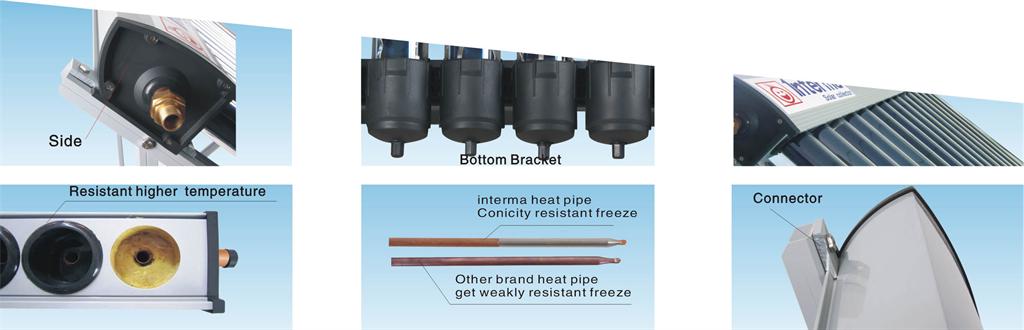

solar thermal collector scm-5



Interma Solar Collector General Specifications
Manifold Casing Material
2.0mm Aluminum Alloy (grade 3A21)
Frame Material
1.8mm Aluminum alloy (grade 3A21)
Header Pipe Material
99.93% pure copper
Insulation
Compressed Rock Wool
Rubber Seals and Rings
HTV grade silicone rubber
Flat roof installation angle
45o
Maximum Operating Pressure
6bars
Optimal flow rate
0.1L/min/tube ?0.026G/min/tube
Performance Data
See EN12975 testing reports


Product information

The YTM-SCM system is combined with solar collector, pressurized storage tank, intelligent controller, solar station, expansion vessel, pipeline etc.

1. Collector: SCM, SR series or U pipe collectors

2. Tank: pressurized tank, 100L-700L

3. YTM-TH-01 or YTM-PM-02 solar working station.

4. TK-7Y temperature differential controller


Customize Producing Acceptable

Models Name

collectors Models

Collector quantity

coils

working station

Controller

Expansion vessel

Tank capacity

Qty (set)

20’ft

40’hq

YTM-SU-CP-150-15

YTM-SCM15-58/1800

YTM-TH-02

TK-7Y

8L

150L

38

93

YTM-SU-CP-200-20

YTM-SCM20-58/1800

YTM-TH-02

TK-7Y

8L

200L

29

69

YTM-SU-CP-200-24

YTM-SCM12-58/1800

○○

YTM-TH-02

TK-7Y

8L

200L

28

67

YTM-SU-CP-300-30

YTM-SCM15-58/1800

○○

YTM-TH-02

TK-7Y

8L

300L

20

50

YTM-SU-CP-300-36

YTM-SCM12-58/1800

○○

YTM-TH-01

TK-7Y

8L

300L

19

47

YTM-SU-CP-500-60

YTM-SCM20-58/1800

○○

YTM-TH-01

TK-7Y

16L

500L

13

32

YTM-SU-CP-700-80

YTM-SCM20-58/1800

○○

YTM-TH-01

TK-7Y

16L

700L

10

24

  • We accept the custom-made according to your specifications,

  • *Tips:collector coil
