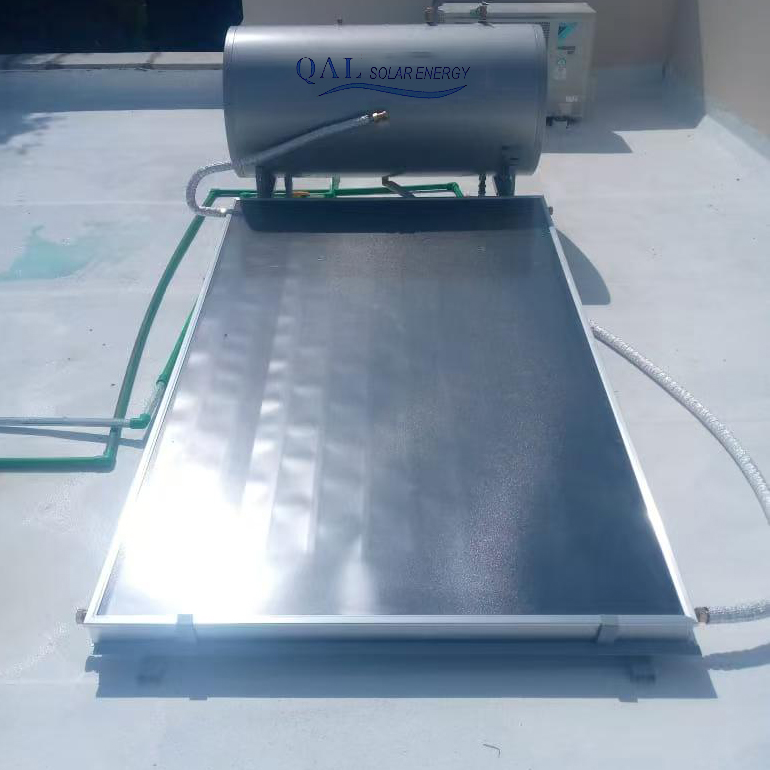

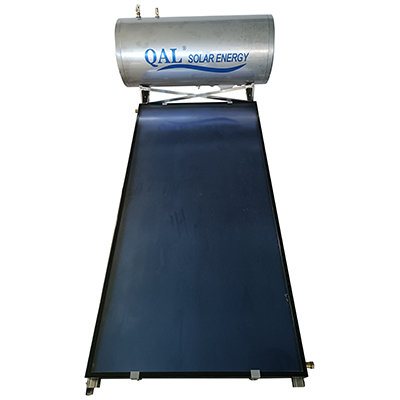

| Compact pressurized flat plate panel solar water heater | |||||||||
| Circulating mode | Product Model | Capacity (Liters) | Collecting Area(㎡) | Flat Plate Panel | Inner/Outer Tank Dia.(mm) | Working pressure of system(Mpa) | Working pressure of jacket(Mpa) | ||
| L (mm) | W (mm) | H (mm) | |||||||
| WT-200L- 2.5m2 | 200 | 2.5 | 2000 | 1500 | 80 | φ496/φ600 | 0.7 | 0.2 | |
| WT-300L- 4m2 | 300 | 4 | 2000 | 1000 | 80 | φ496/φ600 | 0.7 | 0.2 | |
| Water Tank | Inner Tank | Special Steel Plate With Enamel Coating(2.5mm thick), same as jacket tank | 200L: 1600 | |||||||
| Outer Tank | Color Steel Plate(0.4mm thick) | |||||||||
| Insulation Layer | Polyurethane foam(50mm thick) | 300L :1900 | ||||||||
| Electric Heater | 2KW and 3KW (220V,50HZ) | |||||||||
| Flat Plate Panel | Cover | Tempered Glass 3.2mm | 2m2:650 | |||||||
| Absorber | Aluminium Plate/Copper | |||||||||
| Coating | Selective absorb painting | 2.5m2: 850 | ||||||||
| Insulation | Rock wool and PU | |||||||||
| Sealing profile | EPDM | |||||||||
| Compact pressurized flat plate panel solar water heater | |||||||||
| Circulating mode | Product Model | Capacity (Liters) | Collecting Area(㎡) | Flat Plate Panel | Inner/Outer Tank Dia.(mm) | Working pressure of system(Mpa) | Working pressure of jacket(Mpa) | ||
| L (mm) | W (mm) | H (mm) | |||||||
| WT-200L- 2.5m2 | 200 | 2.5 | 2000 | 1500 | 80 | φ496/φ600 | 0.7 | 0.2 | |
| WT-300L- 4m2 | 300 | 4 | 2000 | 1000 | 80 | φ496/φ600 | 0.7 | 0.2 | |
| Water Tank | Inner Tank | Special Steel Plate With Enamel Coating(2.5mm thick), same as jacket tank | 200L: 1600 | |||||||
| Outer Tank | Color Steel Plate(0.4mm thick) | |||||||||
| Insulation Layer | Polyurethane foam(50mm thick) | 300L :1900 | ||||||||
| Electric Heater | 2KW and 3KW (220V,50HZ) | |||||||||
| Flat Plate Panel | Cover | Tempered Glass 3.2mm | 2m2:650 | |||||||
| Absorber | Aluminium Plate/Copper | |||||||||
| Coating | Selective absorb painting | 2.5m2: 850 | ||||||||
| Insulation | Rock wool and PU | |||||||||
| Sealing profile | EPDM | |||||||||
